Manufacturing Equipments & Process Flow of Sintered SmCo

Advanced manufacturing equipments ensure high quality all the time

Compounding

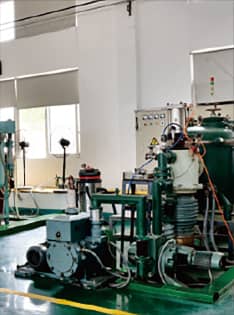

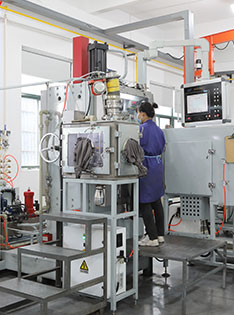

Melting

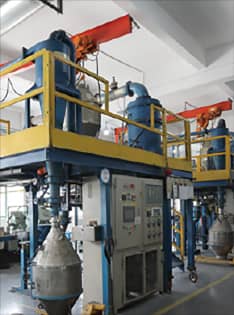

Jet Milling

Pressing

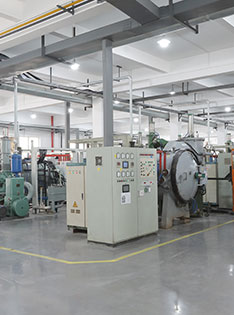

Sintering

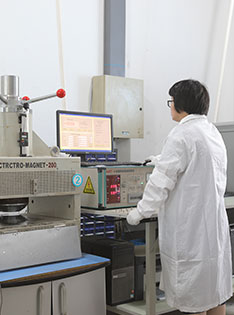

Magnetic Properties Testing

Machining

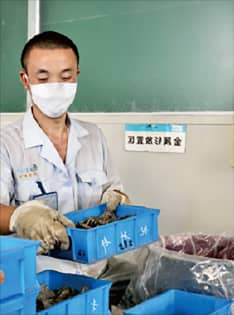

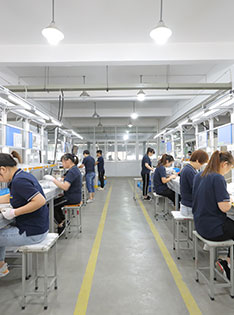

Inspection

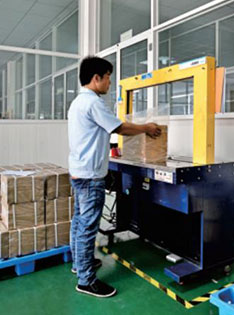

Packing

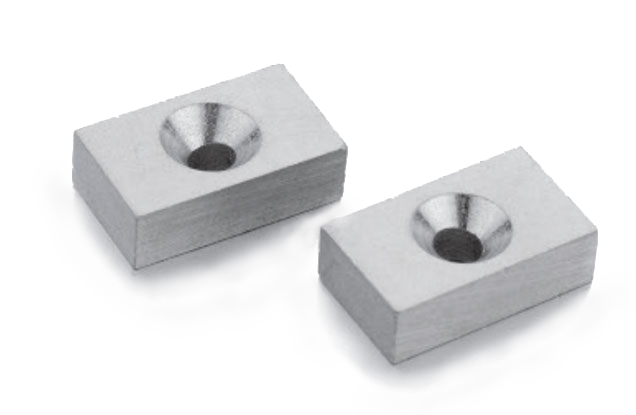

SINTERED SMCO
MAGNETIC AND PHYSICAL CHARACTERISTICS OF SINTERED SMCO

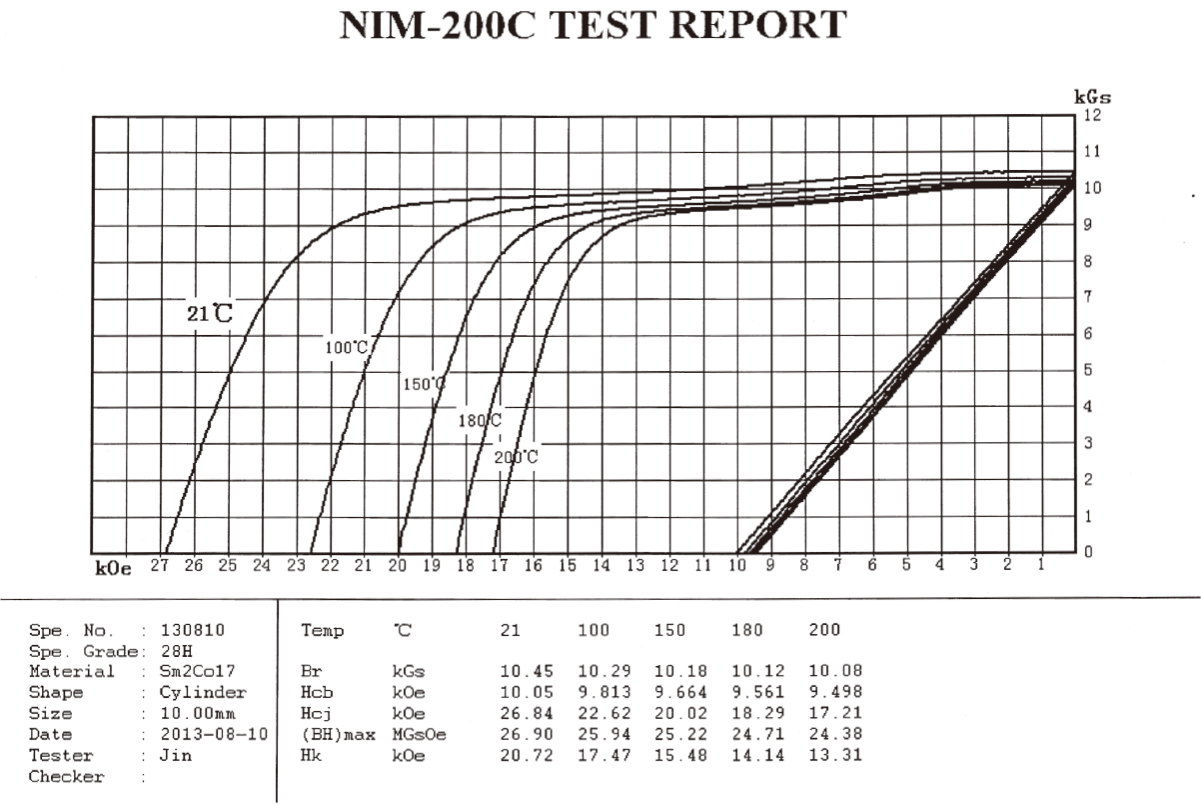

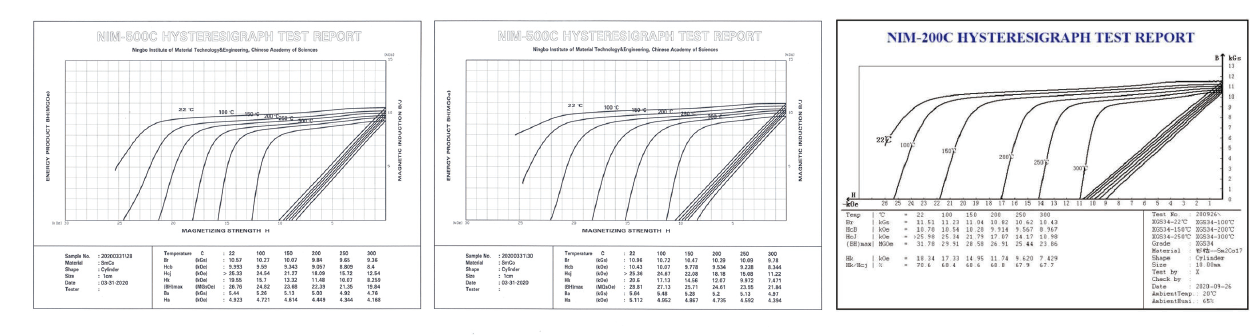

DEMAGNETIZATION CURVES OF SINTERED SMCO MAGNET
Magnet shape Maximum machining size(mm) Minimum machining size(mm)
Block Rectangle:W100×H40×L200 W0.9×H0.3×L0.9
Square:W100×H100×L100

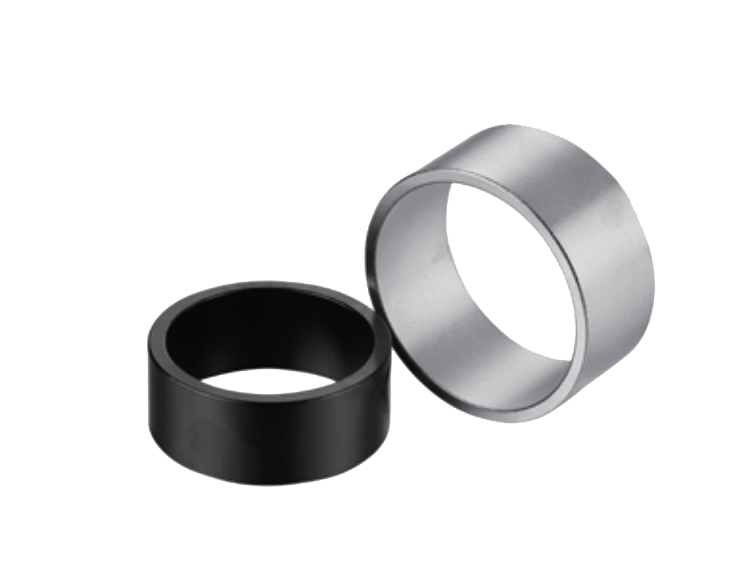

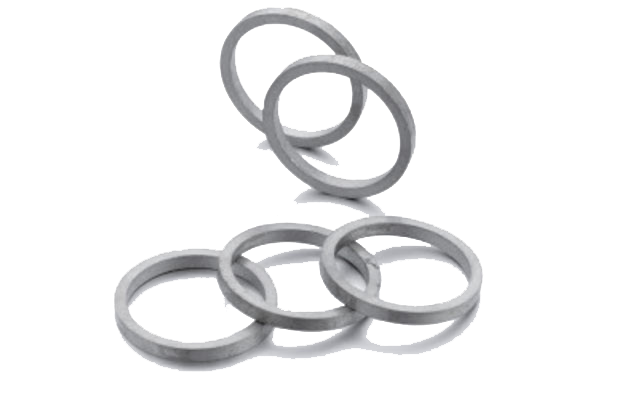

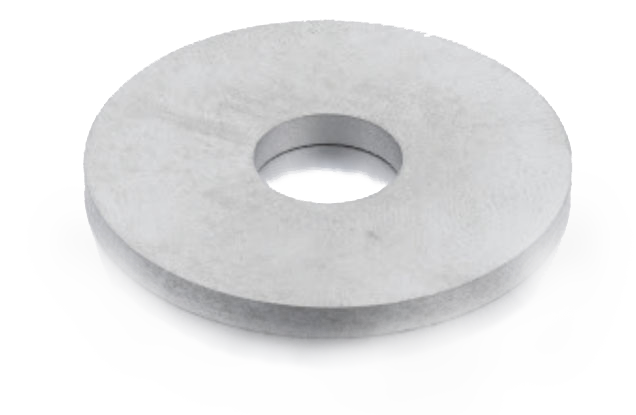

Ring D160×d150×H50(Large D/H ratio) D1.5×d0.5×H0.3
D60×d40×H150(Large H/D ratio)

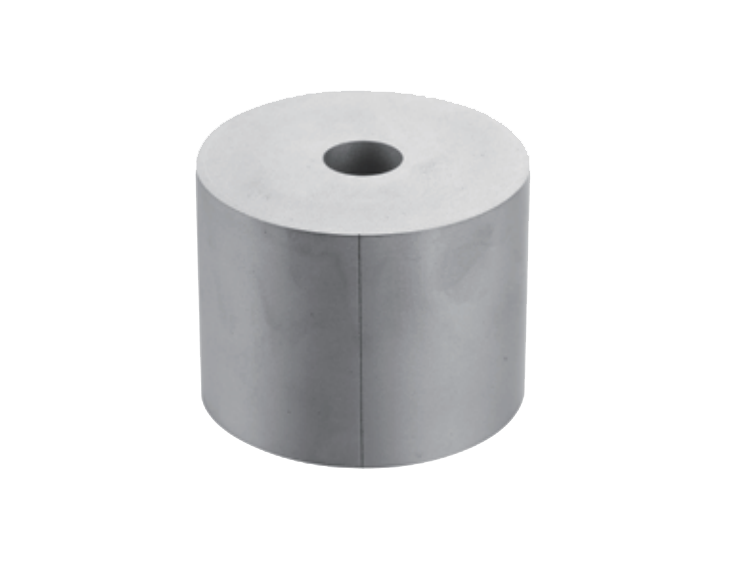

Cylinder D160×H60(Large D/H ratio) D1×H0.5
D60XH150(Large H/D ratio)

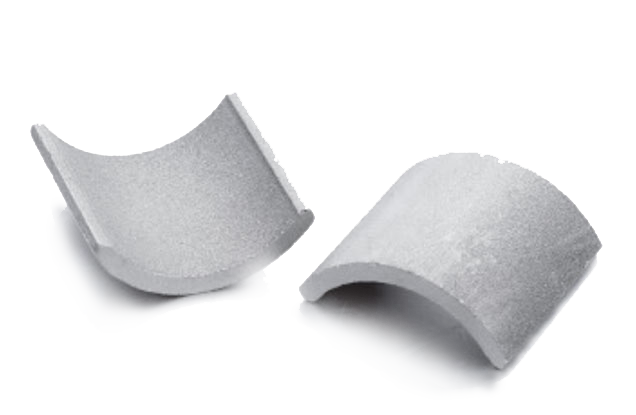

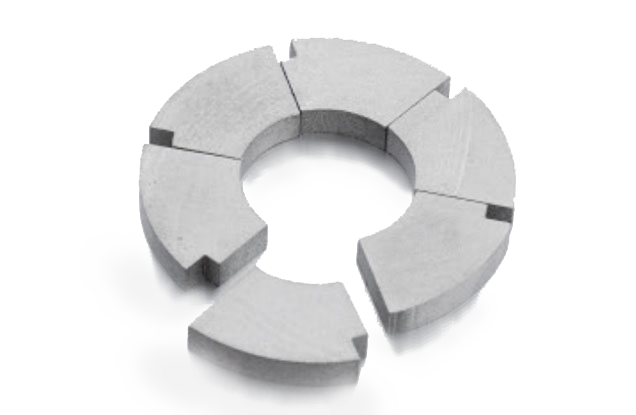

Arc segment W200×H80×L100(Large W/L ratio) W3×H1×L2
W100×H80×L200(Large L/W ratio)

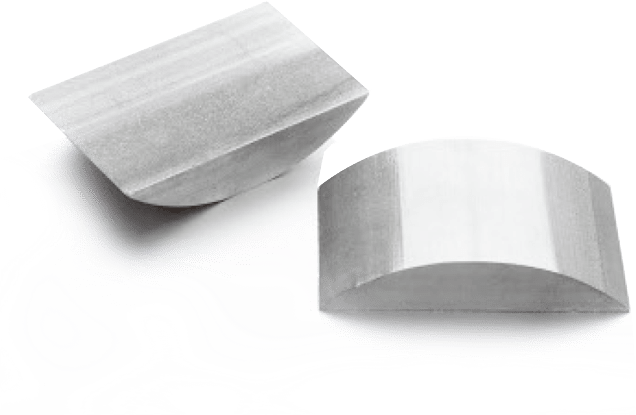

Loaf W100×H40×L200 W2×H2×L1
Irregular W200×H80×L100(Large W/L ratio) W0.3×H0.9×L0.9
W100×H40×L200(Large L/W ratio)
Warm Tips

SmCo permanent magnetic material has the characteristics of brittleness and lacking of the ductilitys,so it is not suitable for being used as structural parts when being designed. The physical properties of SmCo5 are better than Sm2Co17's because SmCo5 is easy to machine while Sm2Co17 is more brittle. The magnetized SmCo magnet must be picked up carefully during the process of assembling, and separated from other magnets to prevent attracting mutually and then resulting in magnet breaking or even body-hurt.

Sintered SmCo magnet would make some slight collision in the process of production, magnetization, packaging and transportation, so there may be some visual flaws, for example, chips, etc. However, it wouldn't damage its magnetic properties, its stability or its anti -demagnetization as long as its flaws don't affect normal assembling or functions.

Customers who need unmagnetized SmCo magnet must be familiar with their own magnetizing equipments so as to choose our grades which can be magnetized fully.

If the designed products are used in acid, alkali or worse environments, we may provide following plating:
Plating material Plating method Plating thickness(μm) Plating colour Plating features
Ni Electroplating ≥5 Silver Good resistance to corrosion, high temperature and high humidity
Zn Electroplating ≥5 Silver white General resistance to corrosion and salt spray
Au Electroplating ≥5 Golden Excellent resistance to high temperature, corrosion and colour changing
Ni-CU-Ni Electroplating 15-30 Silver Excellent resistance to corrosion
Epoxy Electrophoresis/Spray 15-20 Black/grey Good resistance to corrosion, high temperature, high humidity,and especially salt spray
